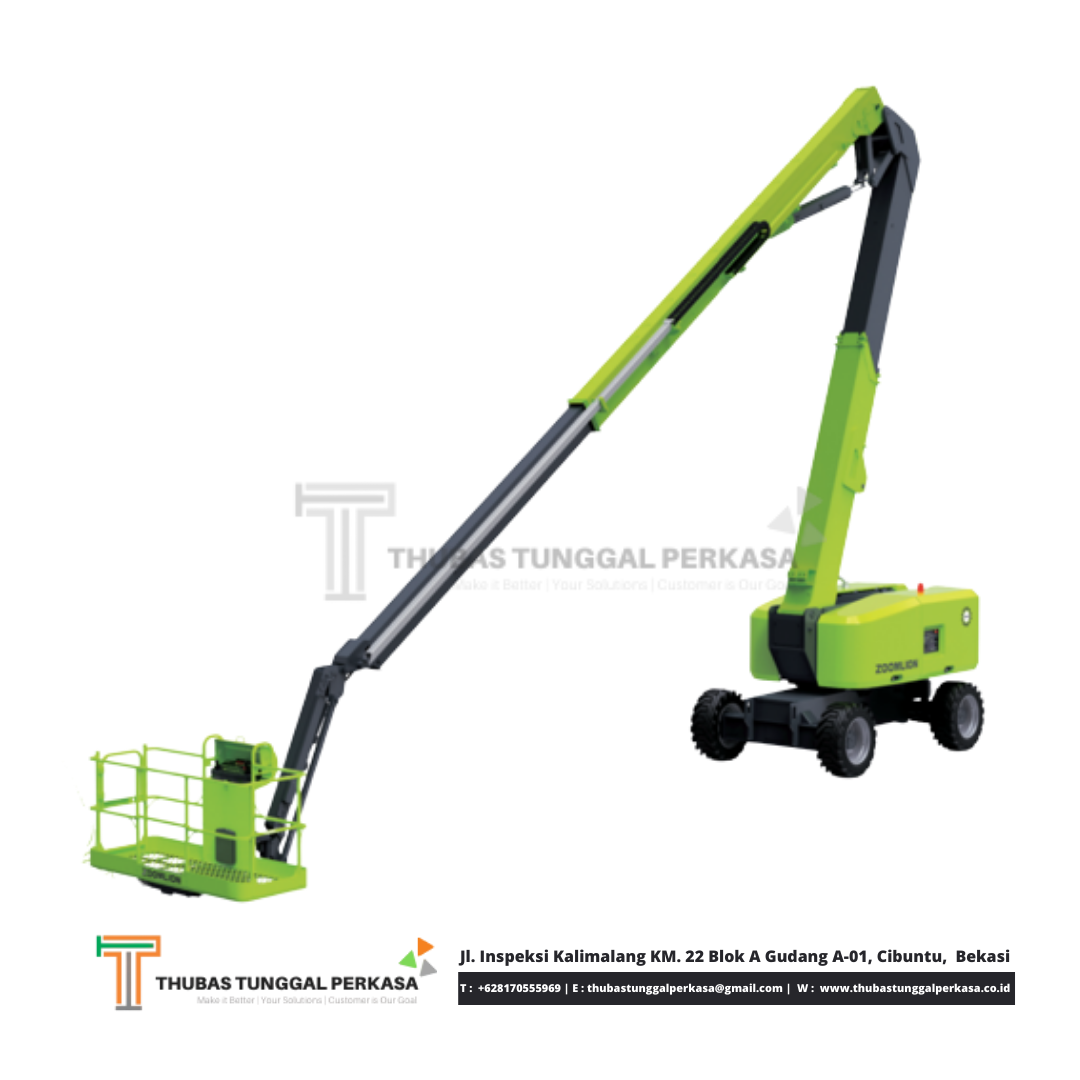

ZOOMLION HYBRID ARTICULATING BOOM LIFTS ZA24JH
Comply with CE Standard
- Plug-in hybrid articulating boom lift features long running time and low emission
- Electric mode almost suitable for every sector, hybrid mode provides stronger off-road capability
- AGM batteries offer large capacity with long working time and maintenance-free feature
- Offer industry-leading work height of 26.5m, a horizontal outreach of 18.9m, and a up and over height of 9.42m
- Platform fast lifting function provides extreme maneuverability
- Outstanding below ground reach of 5.1m
- Provide a hydraulic system with multi-way valve for accurate control
| Model | ZA24JH | |
| Imperial | Metric | |
| Size | ||
| Work Height | 86ft 11in | 26.5m |
| Platform Height | 80ft 5in | 24.5m |
| Horizontal Outreach | 62ft | 18.9m |
| Up and Over Height | 30ft 11in | 9.42m |
| A – Stowed Length | 36ft 9in | 11.2m |
| B – Stowed Width | 8ft 2in | 2.49m |
| C – Stowed Height | 9ft 10in | 3m |
| D – Platform Length | 8ft | 2.44m |
| E – Platform Width | 2ft12in | 0.91m |
| F – Wheelbase | 10ft | 3.05m |
| G – Ground Clearance | 1ft 5in | 0.42m |
| Performance | ||
| Platform Capacity | 510lb | 230kg |
| Drive Speed | 3.11 mph | 5km/h |
| Gradeability | 45% | |
| Axles Oscillation | 8in | 0.20m |
| Turning Radius (Inside) | 11ft | 3.35m |
| Turning Radius (Outside) | 21ft 3in | 6.48m |
| Turntable Swing | 360° continuous | |
| Platform Rotation | ±90° | |
| H-Tail Swing | 3ft 9in | 1.15m |
| Max. Working Slope | 4° | |
| Max. Wind Speed | 27.96mph | 12.5m/s |
| Power | ||
| Engine | Kubota | |
| Battery | AGM Maintenance-free | |
| Control Voltage | 12V | |
| Fuel Tank Capacity | 39.6 (us gal) | 150L |
| Hydraulic Tank Capacity | 47.6 (us gal) | 180L |
| Tire | ||
| Type | 15-625 Foam-filled Tires | |
| Weight | ||
| Gross | 39242 lb | 17800kg |
