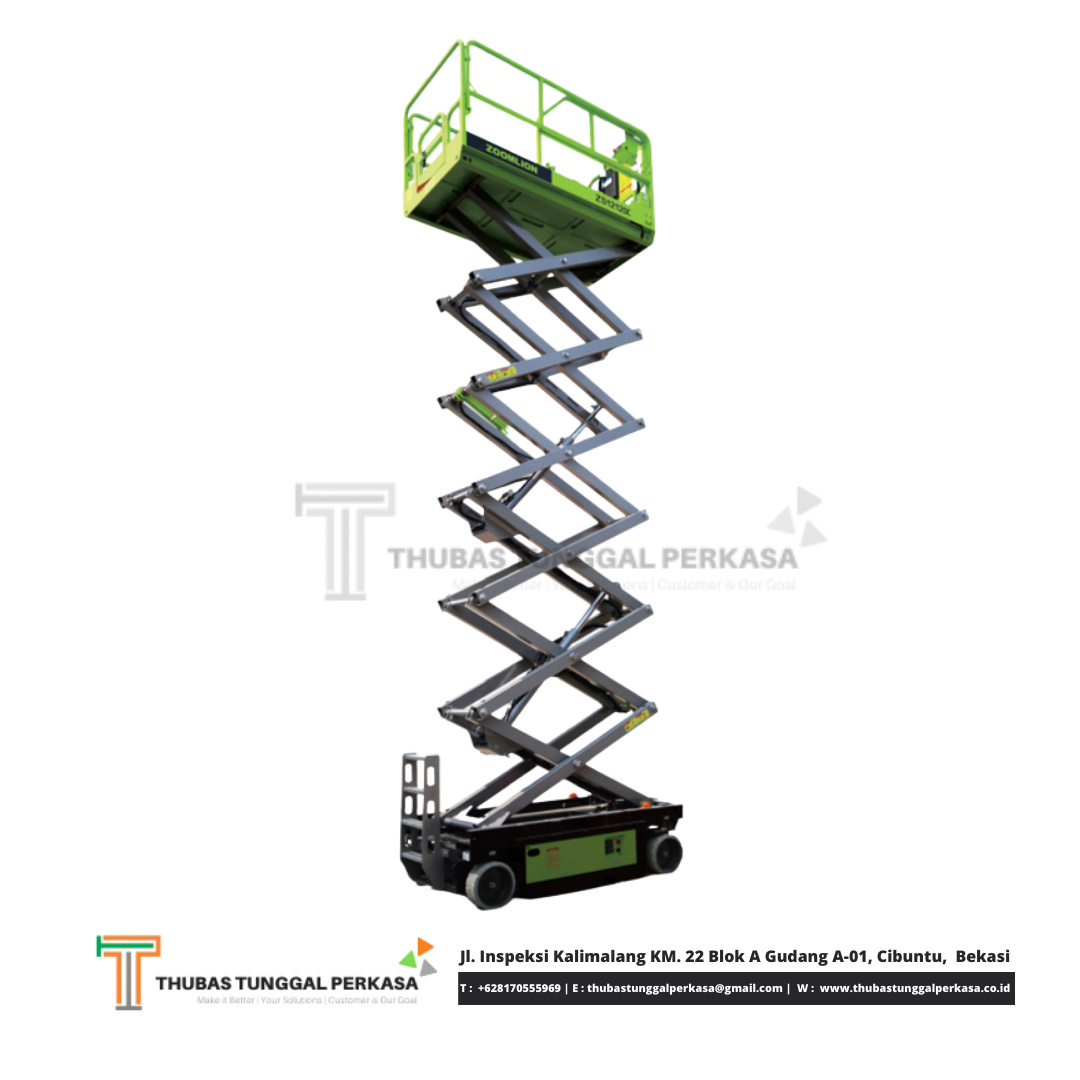

MAIN SPECS OF SCISSOR LIFTS ZS1012DC
DC Series
Comply with CE/ANSI/CSA Standard
High Performance
- Efficient electric direct drive system
- Greater platform capacity with better performance on-the-job
- Front-wheel drive and brake offer mobility and versatility
Easy Maintenance & Service
- Common components and modular design, easy to maintenance
- Bilateral swing-out trays (battery & hydraulic), simple to service
- Robust & build to last, reliable, and safe
| Model | ZS0607DC | ZS0608DC | ZS0808DC | ZS1012DC | ZS1212DC | ZS1414DC | ||||||||||||
| Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | |||||||
| Size | ||||||||||||||||||
| Work Height | 25ft 7in | 7.8m | 26ft 3in | 8.00m | 32ft 10in | 10.00m | 38ft 9in | 11.80m | 45ft 3in | 13.80m | 51ft 6in | 15.7m | ||||||
| A-Platform Height-Elevated | 19ft | 5.8m | 19ft 8in | 6.00m | 26ft 3in | 8.00m | 32ft 2in | 9.80m | 38ft 9in | 11.80m | 44ft 11in | 13.7m | ||||||
| B-Platform Height-Stowed | 3ft 5in | 1.05m | 3ft 6in | 1.07m | 3ft 11in | 1.20m | 4ft 4in | 1.33m | 4ft 10in | 1.46m | 5ft | 1.53m | ||||||
| C-Platform Length 5ft 5in | 1.65m 7ft 7in | 2.30m 7ft 7in | 2.30m 7ft 7in | 2.30m 7ft 7in | 2.30m 8ft 9in | 2.67m | ||||||||||||
| D-Platform Width | 2ft 5in | 0.74m | 2ft 8in | 0.81m | 2ft 8in | 0.81m | 3ft 8in | 1.12m | 3ft 8in | 1.12m | 3ft 8in | 1.12m | ||||||
| Platform Extension | 3ft | 0.91m | 3ft | 0.91m | 3ft | 0.91m | 3ft | 0.91m | 3ft | 0.91m | 3ft | 0.9m | ||||||
| E-Overall Height (Rails Up) | 7ft 3in | 2.20m | 7ft 4in | 2.22m | 7ft 9in | 2.35m | 8ft 1in | 2.46m | 8ft 6in | 2.59m | 8ft 8in | 2.65m | ||||||
| Overall Height (Rails Down) | 5ft 10in | 1.79m | 5ft 8in | 1.72m | 6ft 1in | 1.85m | 6ft 4in | 1.92m | 6ft 9in | 2.05m | 6ft 11in | 2.1m | ||||||
| F-Overall Length | 6ft 1in | 1.85m | 8ft 2in | 2.49m | 8ft 2in | 2.49m | 8ft 2in | 2.49m | 8ft 2in | 2.49m | 9ft 5in | 2.87m | ||||||
| G-Overall Width | 2ft 6in | 0.76m | 2ft 8in | 0.81m | 2ft 8in | 0.81m | 3ft 9in | 1.15m | 3ft 9in | 1.15m | 4ft 7in | 1.4m | ||||||
| H Wheelbase | 4ft 6in | 1.37m | 6ft 1in | 1.85m | 6ft 1in | 1.85m | 6ft 1in | 1.85m | 6ft 1in | 1.85m | 7ft 3in | 2.22m | ||||||
| I-Ground Clearance (Stowed) | 2.4in | 0.06m | 4.5in | 0.11m | 4.5in | 0.11m | 4.5in | 0.11m | 4.5in | 0.11m | 4.5in | 0.11m | ||||||
| J-Ground Clearance (Raised) | 0.65in | 0.016m | 0.75in | 0.02m | 0.75in | 0.02m | 0.75in | 0.02m | 0.75in | 0.02m | 0.75in | 0.02m | ||||||
| Performance | ||||||||||||||||||
| Platform Capacity | 510lb | 230kg | 840lb | 380kg | 510lb | 230kg | 770lb | 350kg | 770lb | 350kg | 570lb | 260kg | ||||||
| Capacity on Deck Extension | 250lb | 113kg | 250lb | 113kg | 250lb | 113kg | 250lb | 113kg | 250lb | 113kg | 250lb | 113kg | ||||||
| Max. Number of Workers | 2 | 2 | 2 | 2 | 3 | 2 | ||||||||||||
| Drive Speed (Stowed) 2.5mph | 4km/h 2.5mph | 4km/h 2.5mph | 4km/h 2.5mph | 4km/h 2.5mph | 4km/h 2.5mph | 4km/h | ||||||||||||
| Drive Speed (Raised) | 0.5mph | 0.8km/h | 0.5mph | 0.8km/h | 0.5mph | 0.8km/h | 0.5mph | 0.8km/h | 0.5mph | 0.8km/h | 0.5mph | 0.8km/h | ||||||
| Turning Radius (Inside) | 4in | 0.1m | 4in | 0.1m | 4in | 0.1m | 4in | 0.1m | 4in | 0.1m | 4in | 0.1m | ||||||
| Turning Radius (Outside) | 5ft3in | 1.6m | 6ft11in | 2.1m | 6ft11in | 2.1m | 7ft3in | 2.2m | 7ft3in | 2.2m | 8ft6in | 2.6m | ||||||
| Lifting Motor | 24V/3.3KW | 24V/3.3KW | 24V/3.3KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | ||||||||||||
| Drive Motor | 24V/2×0.65KW | 24V/2×0.75KW | 24V/2×0.75KW | 24V/2×0.75KW | 24V/2×0.75KW | 24V/2×0.75KW | ||||||||||||
| Up/Down Time | 20s/24s | 28s/35s | 31s/40s | 60s/35s | 62s/42s | 88/60s | ||||||||||||
| Gradeability | 25%(14°) | 30%(17°) | 25%(14°) | 25%(14°) | 25%(14°) | 25%(14°) | ||||||||||||
| Max. Working Slope (Lateral/Vertical) |
1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | ||||||||||||
| Control | Proportional Control |
Proportional Control |
Proportional Control |
Proportional Control |
Proportional Control |
Proportional Control |
||||||||||||
| Drive | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | ||||||||||||
| Brake | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | ||||||||||||
| Tire | Ø13in ×4in |
Ø323mm ×100mm |
Ø15in ×5in |
Ø381mm ×127mm |
Ø15in ×5in |
Ø381mm ×127mm |
Ø15in ×5in |
Ø381mm ×127mm |
Ø15in ×5in |
Ø381mm ×127mm |
Ø15in ×5in |
Ø381mm ×127mm |
||||||
| Power | ||||||||||||||||||
| Battery | 4×6V/210Ah | 4×6V/225Ah | 4×6V/225Ah | 4×6V/240Ah | 4×12V/300Ah | 4×12V/300Ah | ||||||||||||
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | ||||||||||||
| Weight | ||||||||||||||||||
| Gross | 3210lb | 1455kg | 4280lb | 1940kg | 4610lb | 2090kg | 6460lb | 2930kg | 7075lb | 3210kg | 7870lb | 3570kg | ||||||
