Deskripsi
- Larger working envelope with 28.7m work height and 22.1m horizontal outreach.
- Accurate and efficient traveling AC drive system provides strong power and stable control. Gradeability reaches 45% and motor maintenance-free for its lifttime.
- Meet the requirements of standard container transportation.
- Offer industry-leading dual capacity of 300kg/454kg.
- Customized lithium-ion battery features green, environmental protection, low noise and zero-emission, ideal for construction and plant maintenance
- 606Ah lithium-ion batteries combined with excellent energy management system
provide longer running time. - Low-temperature regenerative current control and power self-adaptive control effectively improve the safety of Li-ion battery and greatly prolong the batteries service life of at least 10%.
- Provide a variety of standard charging plugs and 10A/16A/32A multi-power optional charging mode featuring strong charging adaptability.
- Brand-new appearance with lightweight GFRP composite material hood and integrally formed coating features anti-corrosion, heat preservation, aging resistance and easy cleaning.
- Assembled large-opening component box, open-close hood, and a variety of reserved inspection holes easy to service.
- Comply with GB and CE standards, up to 20 safety inspection functions, safer and more stable.

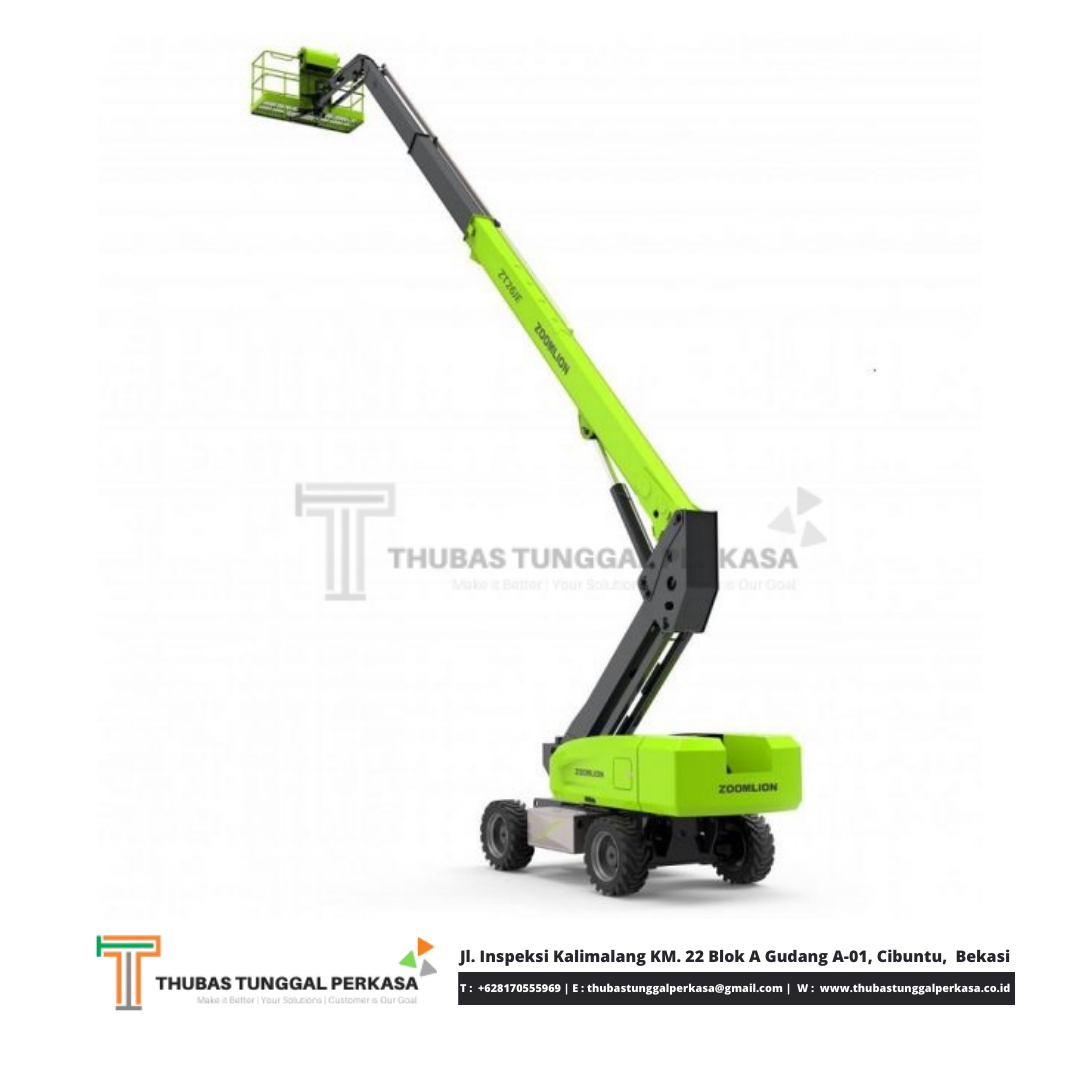

| Model | ZT26JE | |||
| Imperial | Metric | |||
| Size | ||||
| Work Height | 94ft 2in | 28.70m | ||
| Platform Height | 87ft 7in | 26.70m | ||
| Horizontal Outreach | 82ft 6in | 22.1m | ||
| A – Stowed Length | 39ft 1in | 11.91m | ||
| B – Stowed Width | 8ft 2in | 2.49m | ||
| C – Stowed Height | 9ft 3in | 2.82m | ||
| D – Platform Length | 8ft | 2.44m | ||
| E – Platform Width | 3ft | 0.91m | ||
| Jib length | 6ft | 1.83m | ||
| F – Wheelbase | 9ft 2in | 2.80m | ||
| Tread | 6ft 11in | 2.1m | ||
| G – Ground Clearance | 1ft 4in | 0.41m | ||
| Performance | ||||
| Platform Capacity (Unrestricted/Restricted) |
660/1000lb | 300/454kg | ||
| Drive Speed (Stowed) | 3.42mph | 5.5km/h | ||
| Gradeability | 45%(24°) | |||
| Turning Radius (Inside) | 10ft 2in | 3.11m | ||
| Turning Radius (Outside) | 20ft 3in | 6.16m | ||
| Turntable Swing | 360°continuous | |||
| Platform Rotation | ±90° | |||
| Tail Swing | 5ft 3in | 1.61m | ||
| Jib Rotation | 130°(-55°~75°) | |||
| Max. Wind Speed | 28mph | 12.5m/s | ||
| Power | ||||
| Battery | 80V/606Ah | |||
| Charger | 6KW/80V | |||
| Drive Motor | 5.2KW | |||
| Lifting Motor | 30KW | |||
| Auxiliary Power | 12V DC | |||
| Hydraulic Tank | 32 US gal | 120L | ||
| Tire | ||||
| Type | 15-625 Foam-filled tire | |||
| Weight | ||||
| Gross | 39462lb | 17900kg | ||
