Deskripsi

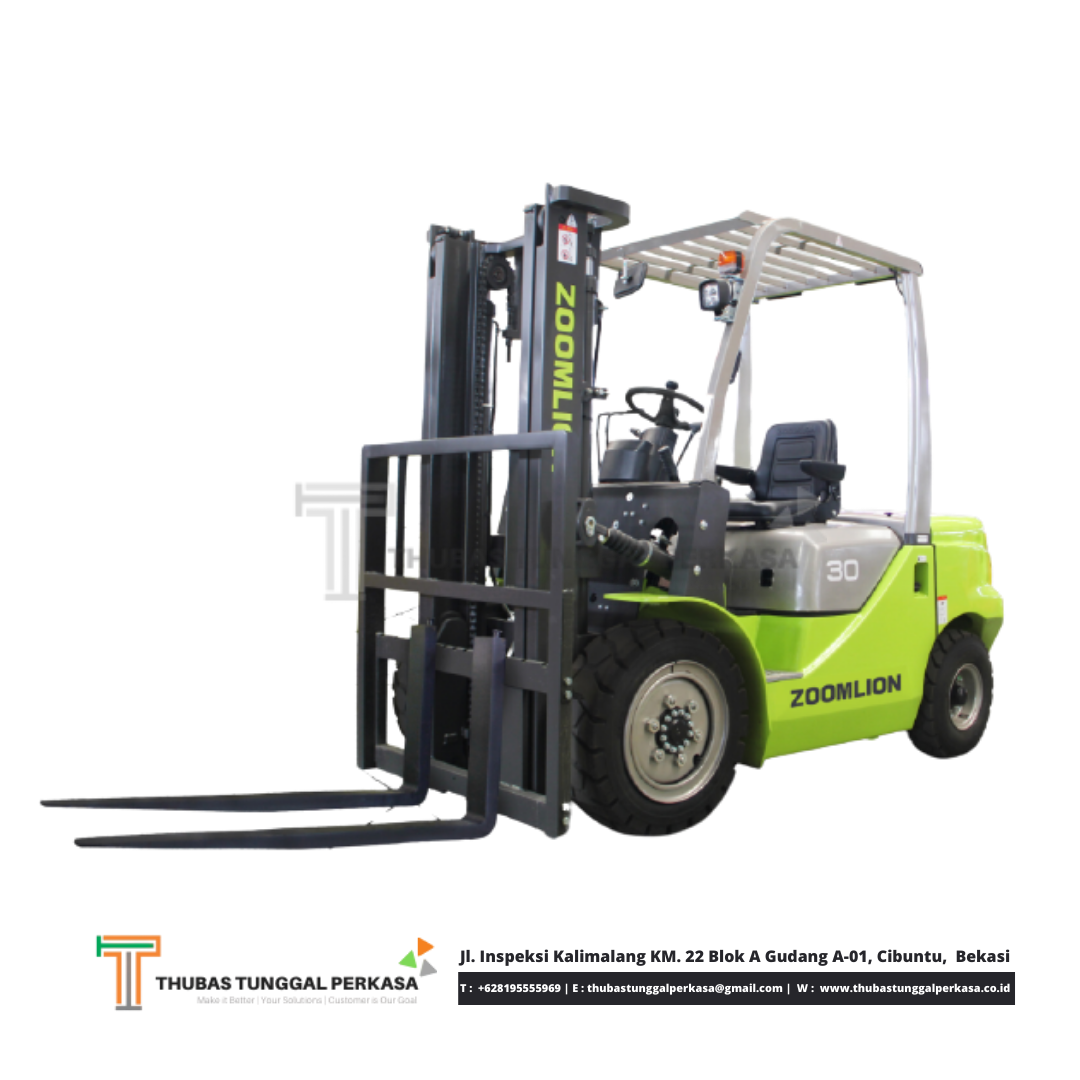

Spesifikasi FD30/35/38Z:
| Specifications | Unit | FD30Z | FD35Z | FD38Z | ||
|---|---|---|---|---|---|---|
| Characteristics | Power | － | diesel | diesel | diesel | |
| Rated Capacity | kg | 3000 | 3500 | 3800 | ||
| Center of load | J(mm) | 500 | 500 | 500 | ||
| Lifting height | h1(mm) | 3000 | 3000 | 3000 | ||
| Free lifting height | h3(mm) | 145 | 145 | 90 | ||
| Forks L×W×H | L5×W×T(mm) | 1070×125×45 | 1070×125×45 | 1070×150×50 | ||
| Tilt Forward/Backward | º | 6/12 | 6/12 | 6/12 | ||
| Min.turning radius | R1(mm) | 2600 | 2600 | 2650 | ||
| Min.ground clearance(Mast) | m(mm) | 120 | 120 | 135 | ||
| Overhead guard height | h4(mm) | 2170 | 2170 | 2170 | ||
| Height from seat to overhead guard | L3(mm) | 480 | 480 | 501 | ||
| Front overhang | L4(mm) | 545 | 545 | 595 | ||
| Perf | Max.traveling speed(loaded) | km/h | 20 | 20 | 20 | |
| Max.lifting speed（loaded/empty） | mm/s | 470/520 | 470/520 | 470/520 | ||
| Drawbar pull/Gradeability | kN/% | 18/20 | 18/20 | 18/20 | ||
| Dimensions | Overall length （without fork） | L1(mm) | 3895 | 3895 | 3966 | |
| Overall width | W1(mm) | 1230 | 1230 | 1230 | ||
| Mast lowered height | h2(mm) | 2065 | 2095 | 2170 | ||
| Mast extended height | mm | 4260 | 4265 | 4263 | ||
| Chassis | Tire | Front | － | 28×9-15-12PR | 28×9-15-12PR | 250-15-16PR |
| Rear | － | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
| Wheelbase | L2(mm) | 1800 | 1800 | 1800 | ||
| Tread width | Front/Rear | S/P(mm) | 1000/970 | 1000/970 | 1000/970 | |
| Curb weight | None-load | kg | 4250 | 4450 | 4800 | |
| Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 | 12/90 | 12/90 |
| Engine | Model | － | QC490GP | QC490GP | QC495G | |
| Rated power | kw/r.p.m | 39/2650 | 39/2650 | 42/2650 | ||
| Rated torque | N·m/r.p.m | 157/1980 | 157/1980 | 174/1980 | ||
| Cylinder amount | － | 4 | 4 | 4 | ||
| Bore×Stroke | mm | 90×105 | 90×105 | 95×105 | ||
| Displacement | L | 2.67 | 2.67 | 2.98 | ||
| Fuel tank | L | 70 | 70 | 70 | ||
| Transmission | － | 1/1 automatic transmission | ||||
| Working pressure | MPa | 17.5 | 17.5 | 17.5 | ||
