Deskripsi

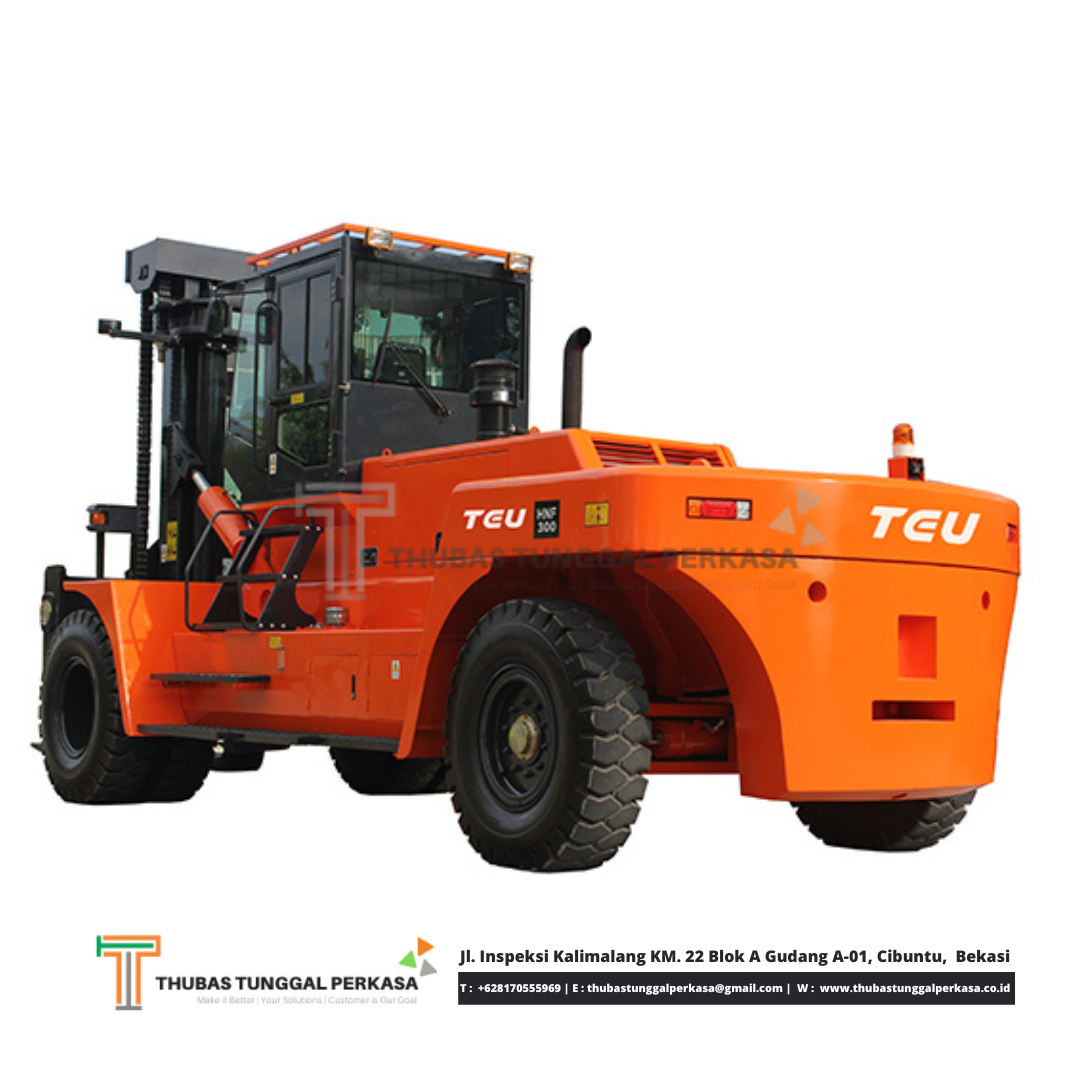

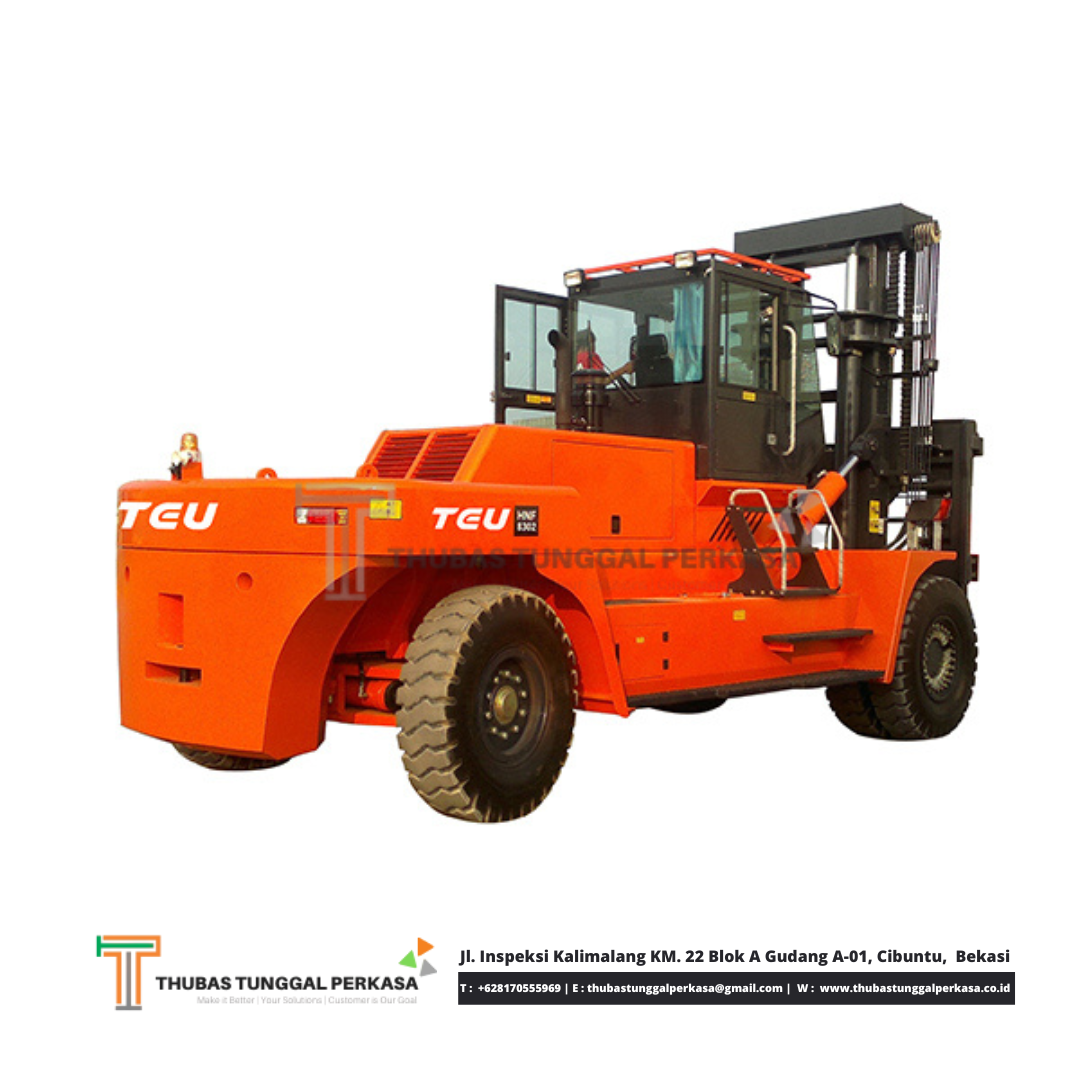

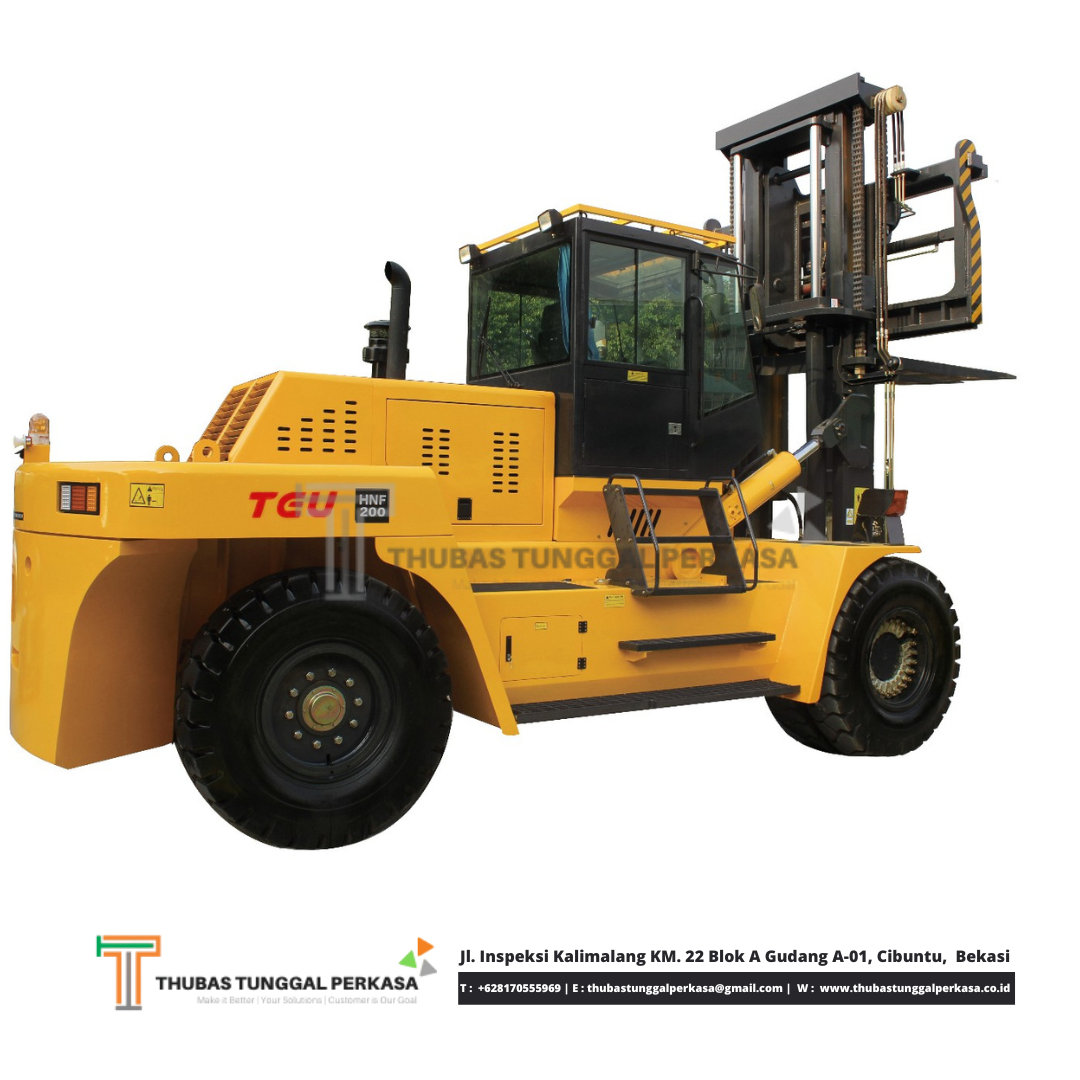

Heavy Duty Diesel Forklift Truck
Truk forklift seri TEU EFFO terutama mencakup forklift diesel 16-36T dan forklift gasoline 16-36T. Forklift diesel memiliki kapasitas kelebihan yang kuat dan kemampuan kerja yang lama. Jenis bensin memiliki dimensi kecil, ringan, daya output tinggi, kebisingan rendah, getaran kecil dan harga murah. Keduanya digunakan di luar ruangan.
Spesifikasi Heavy Duty Diesel Forklift Truck
| Performance | Rated load | 20000 | 25000 | 30000 | 32000 | 36000 | |||
| Load center | 900 | 1250 | 1250 | 1250 | 2500 | ||||
| Free lift | mm | 180 | 1850 | 180 | 180 | ||||
| Mast tilt angle (front/rear) | º | 6/12 | 6/12 | 6 / 12 | 6/12 | 6/12 | |||
| Overall dimensions | Length | mm | 8340 | 9190 | 9640 | 9590 | 9700 | ||
| mm | 3050 | 3050 | 3200 | 3200 | 3320 | ||||
| mm | 3510 | 3510 | 4000/5000/5250 | 4950 | 4310 | ||||
| Mast lifting | mm | 3500 | 3500 | 3500/5500/6000 | 5500 | 3500 | |||
| Fork size (L × W × H) | mm | 2400 × 260 × 100 | 2440 × 300 × 110 | 2440 × 320 × 110 | 2440 × 320 × 110 | ||||
| Min. turning radius | mm | 6250 | 6700 | 6800 | 7260 | 7260 | |||
| Max. travel speed (with load) | km/h | 28 | 28 | 28 | 28 | 28 | |||
| Lifting speed (with load) | mm/s | 260 | 260 | 260 | 260 | 260 | |||
| Gradeability (with load) | % | 20 | 20 | 20 | 20 | 20 | |||
| Weight | kg | 32000 | 35000 | 40000 | 43500 | 45000 | |||
| Tyre | Front | 4 × 14.00-24/24PR | 4 × 14.00-24/28PR | 4 × 14.00-24/28PR | 4 × 14.00-24/32PR | 4 × 16.00-25/32PR | |||
| Rear | 2 × 14.00-24/24PR | 2 × 14.00-24/28PR | 2 × 14.00-24/28PR | 2 × 14.00-24/32PR | 2 × 16.00-25/32PR | ||||
| Wheel tread | Front | mm | 2200 | 2200 | 2490 | 2490 | 2810 | ||
| Rear | mm | 2390 | 2390 | 2450 | 2450 | 2450 | |||
| Wheelbase | mm | 4000 | 4400 | 4800 | 4800 | 4800 | |||
| Min. ground clearance | mm | 250 | 250 | 350 | 350 | 350 | |||
| Engine | Model | WP10G220E343 | WP10G220E343 | WP10G220E343 | WO10G240E341 | WD10G240E21 | |||
| Rated power / rotate speed | kW/r.pm | 162/2000 | 162/2000 | 178/2200 | 178/2200 | 175/2200 | |||
| Max. torque / rotate speed | N.m/r.pm | 908/1500 | 980/1500 | 1052/1500 | 1000 /1600 | 1000/1600 | |||
